| SIZE | |
|---|---|
 |
| TECHNICAL PARAMETER | |
|---|---|
| Model | M690Pro |
| Wheelbase | 700mm |
| Weight of Drone (Without Battery) | 1.69kg |
| Weight of Drone (With Battery) | 3.59kg |
| Weight of Battery | Standard Smart 6S 22AH battery*1PC : 2.18kg |
| Max Take-off Weight | 6kg |
| Maximum Ascent Speed | 5m/s |
| Maximum Descending Speed | 3m/s |
| Maximum Horizontal Flight Speed | 15m/s |
| GPS Hover Accuracy | Vertical:±0.2m; Horizontal:±0.1m |
| Hover Time | 1kg≥55mins; 2kg≥40mins |
| Protection | IP54 |
| Maximum Tolerable Wind Speed | 14m/s |
| Working Temperature | -15℃~50℃ |
| Propulsion System | T-MOTOR |
| Recommended Control System | PIXHAWK |
| Dimensions(Unfolded) | 550*550*445mm(Without Props) |
| Dimensions Folded | 283*278*175mm(With Landing Gear,Without Props) |
| Packing Size | 420*370*280mm(Normal); 510*420*340mm(With Package) |
| Shipping Weight | 6.6kg(With Packaging) |

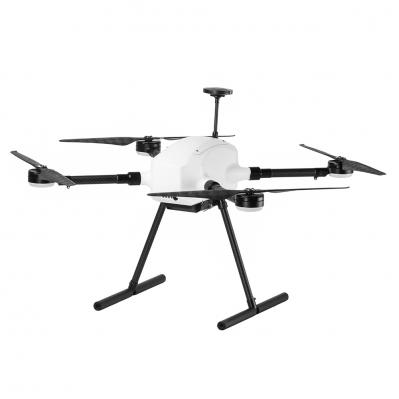

M690PRO, a long-endurance and multi-functional flight platform.
M690Pro could fly up to 55 minutes(1kg payload) for easy mission accomplishment with abundant time.
User-friendly PMM and flexible mounting methods guarantee its compatibility with various devices.
Thanks to the long effective communication distance, excellent protection rate, and portable backpack design, you can shuttle in different environments leisurely.
1. Hollow Design
Made of carbon fiber, Tougher in structure, higher in strength, and lighter in weight.
2. Long Flight Time
Up to 55mins under normal conditions(1kg payload).
3. Smart Battery
High energy density rate and excellent BMS for a longer and safer flight.
4. Custom T-MOTOR Propulsion System
The choice of safety, for long endurance characteristics, the efficiency, reliability, and weight have been optimized to make it highly efficient, stable, and safe.
5. Portable Backpack
Only 5.8kg, travels light, operates fast work efficiently.
6. Protection
The mission killer, allows you to accomplish tasks in different environments.
The M690PRO comes with a flexible connector and multiple optional power supply ports for better compatibility with more devices for different demands.
You may choose from the following equipment: Thermal Camera, Laser Night Vision, Aerial Photography, Winch System, and Cargo Box.
