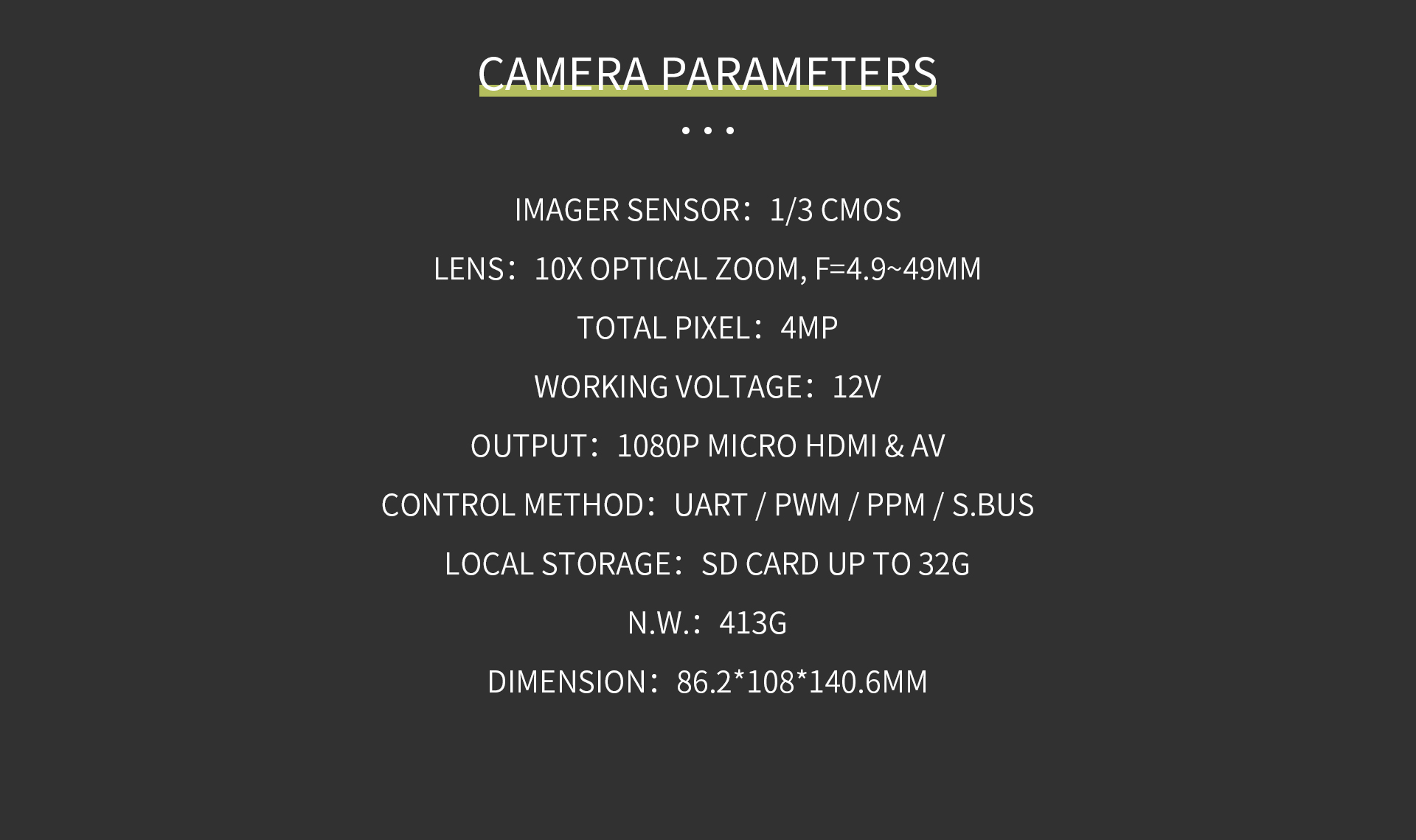

| TECHNICAL PARAMETER | |
|---|---|
| IMAGER SENSOR | 1/3 CMOS |
| LENS | 10X OPTICAL ZOOM, F=4.9~49MM |
| TOTAL PIXEL | 4MP |
| WORKING VOLTAGE | 12V |
| OUTPUT | 1080P MICRO HDMI & AV |
| CONTROL METHOD | UART/PWM/PPM/S.BUS |
| LOCAL STORAGE | SD CARD UP TO 32G |
| N.W. | 413G |
| DIMENSION | 86.2*108*140.6MM |

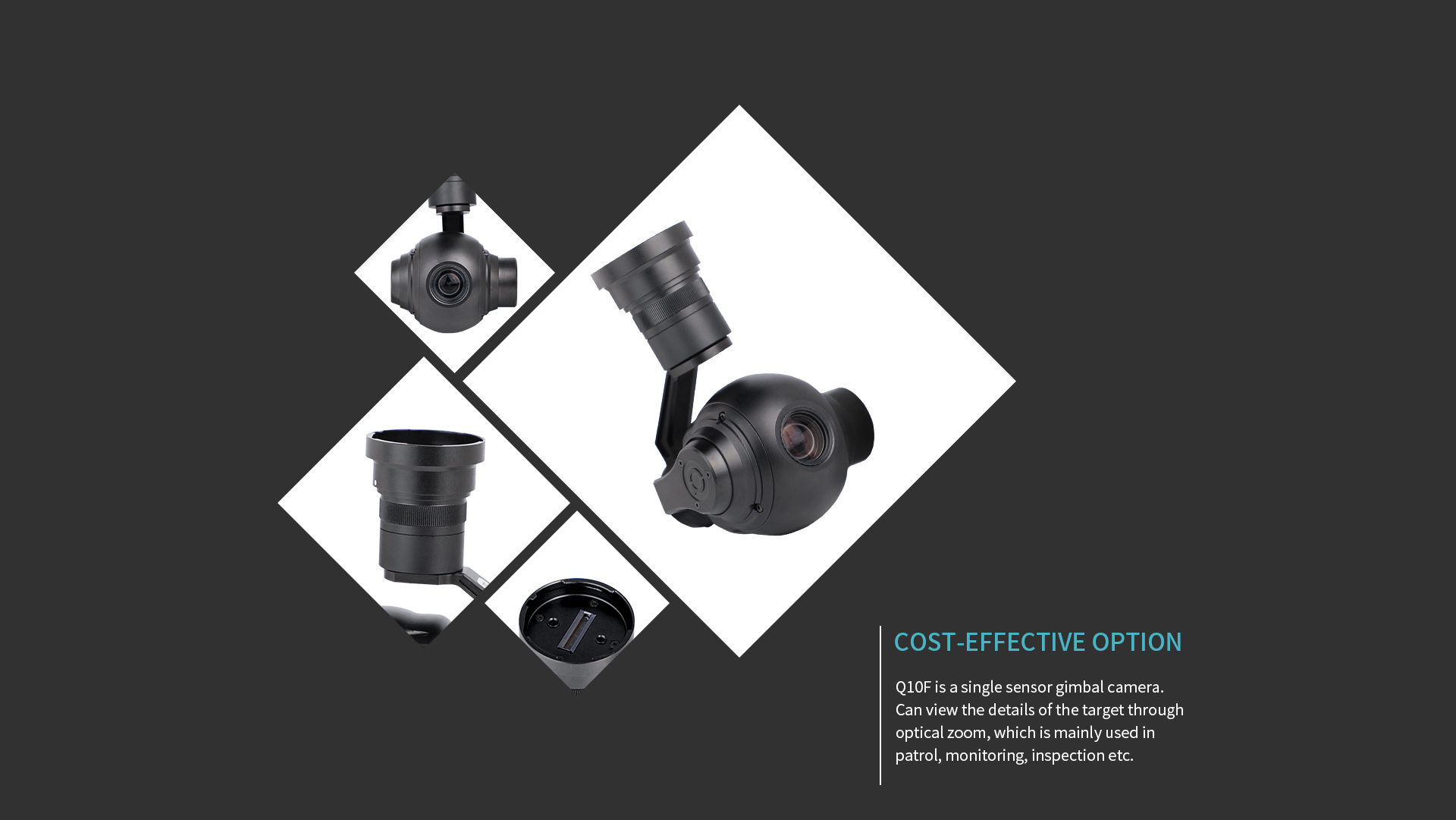

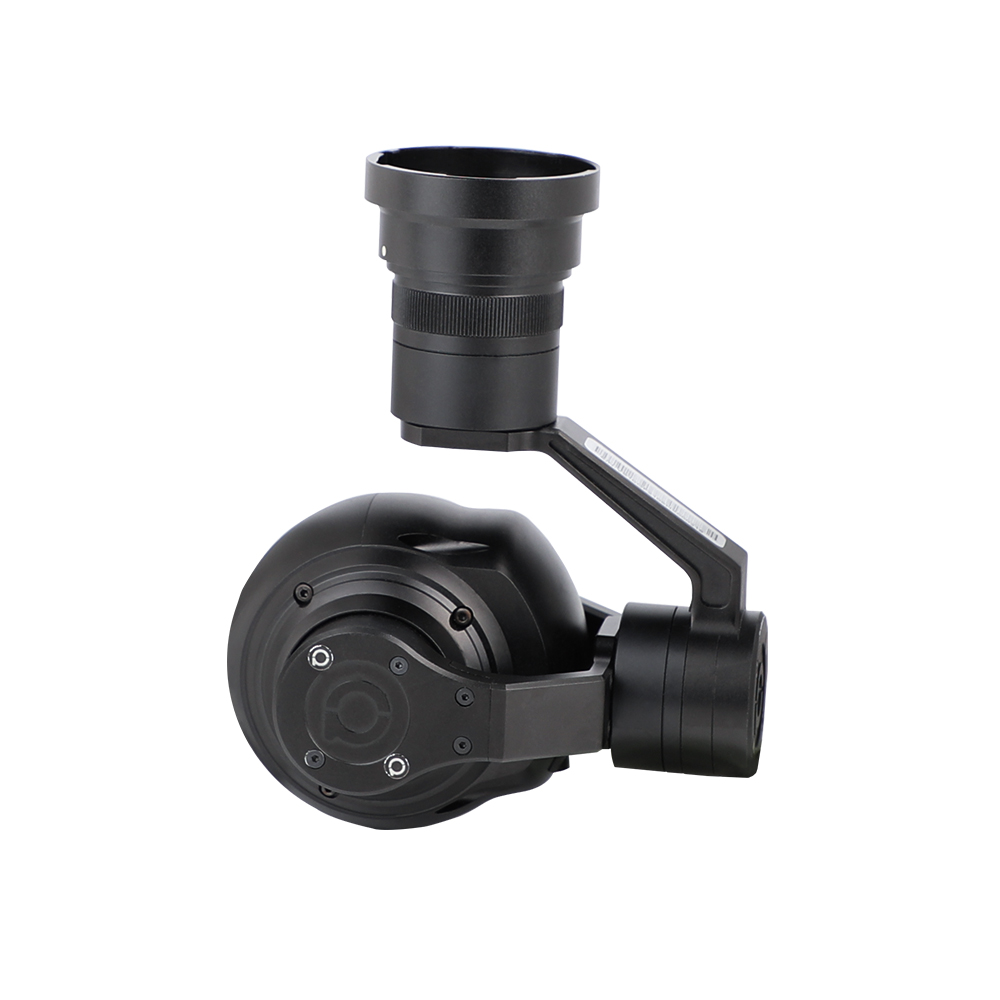

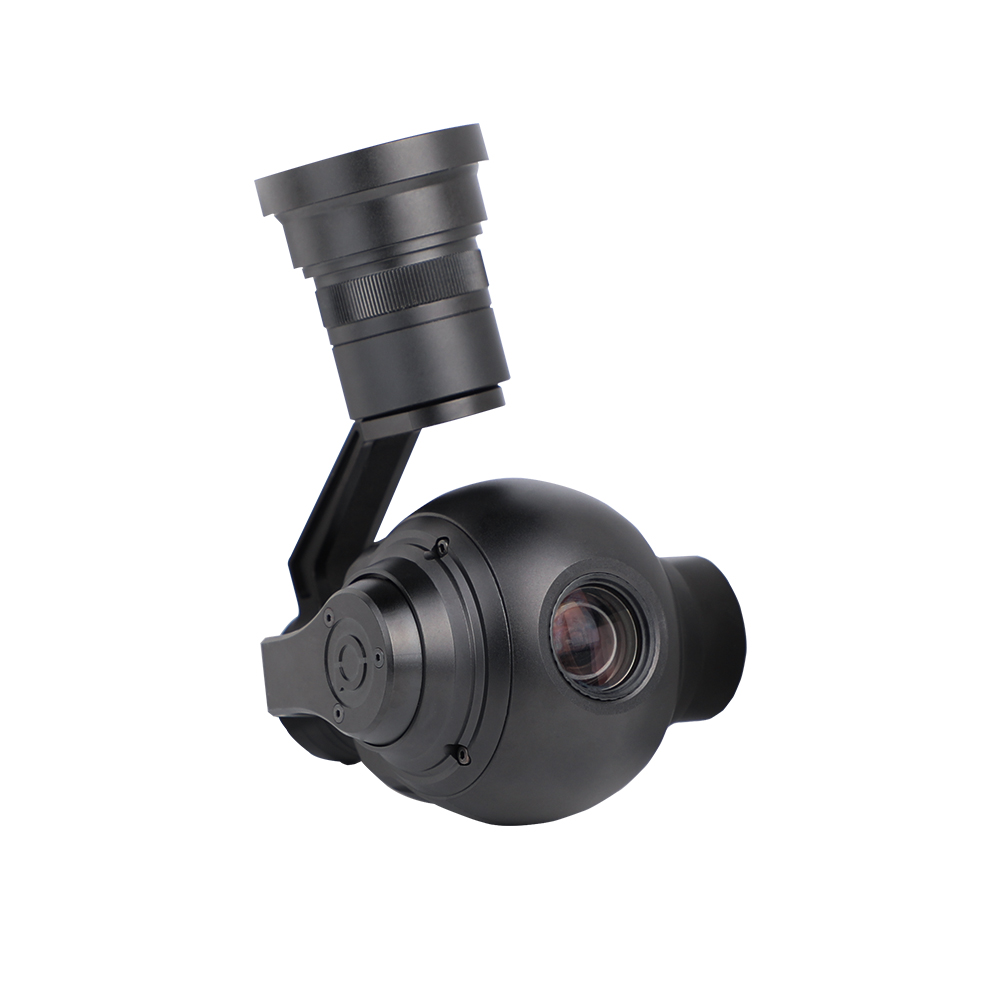

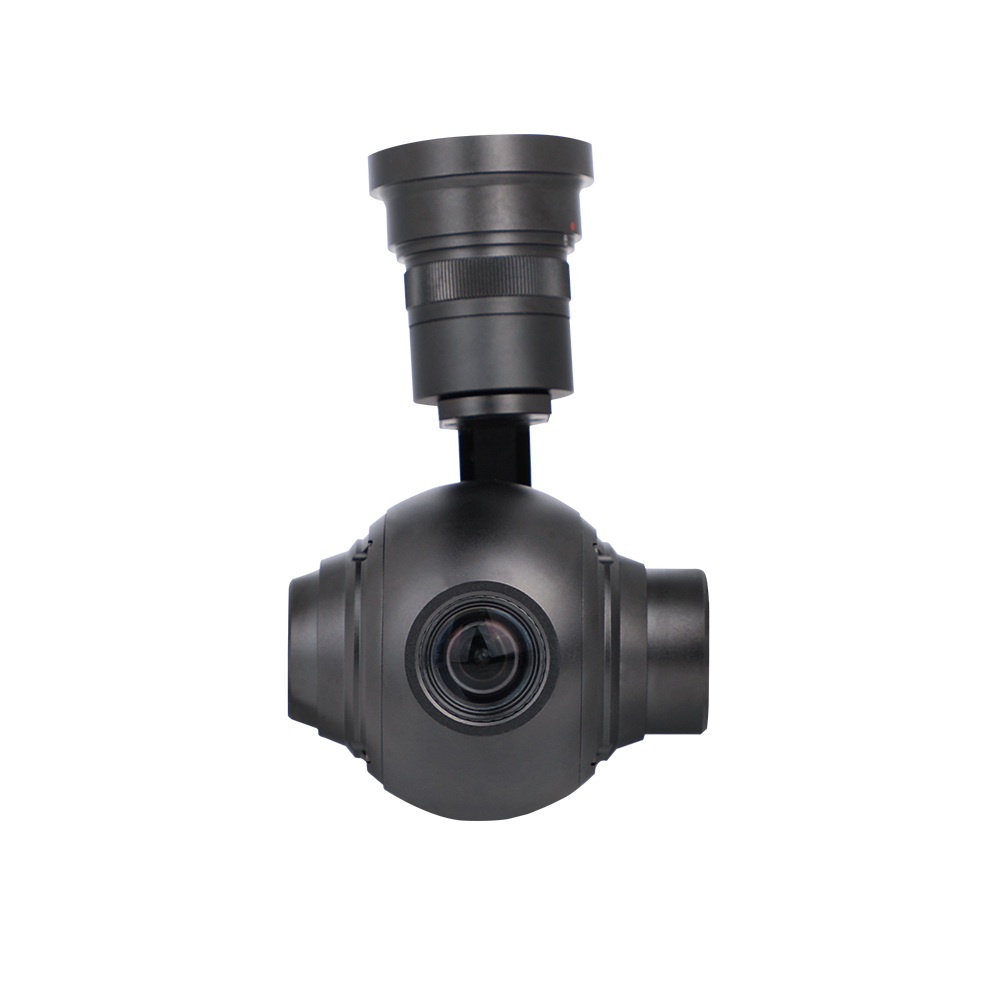

Q10f is a single-sensor gimbal camera, that can view the details of the target through optical zoom, which is mainly used in patrol, monitoring, inspection, etc.
