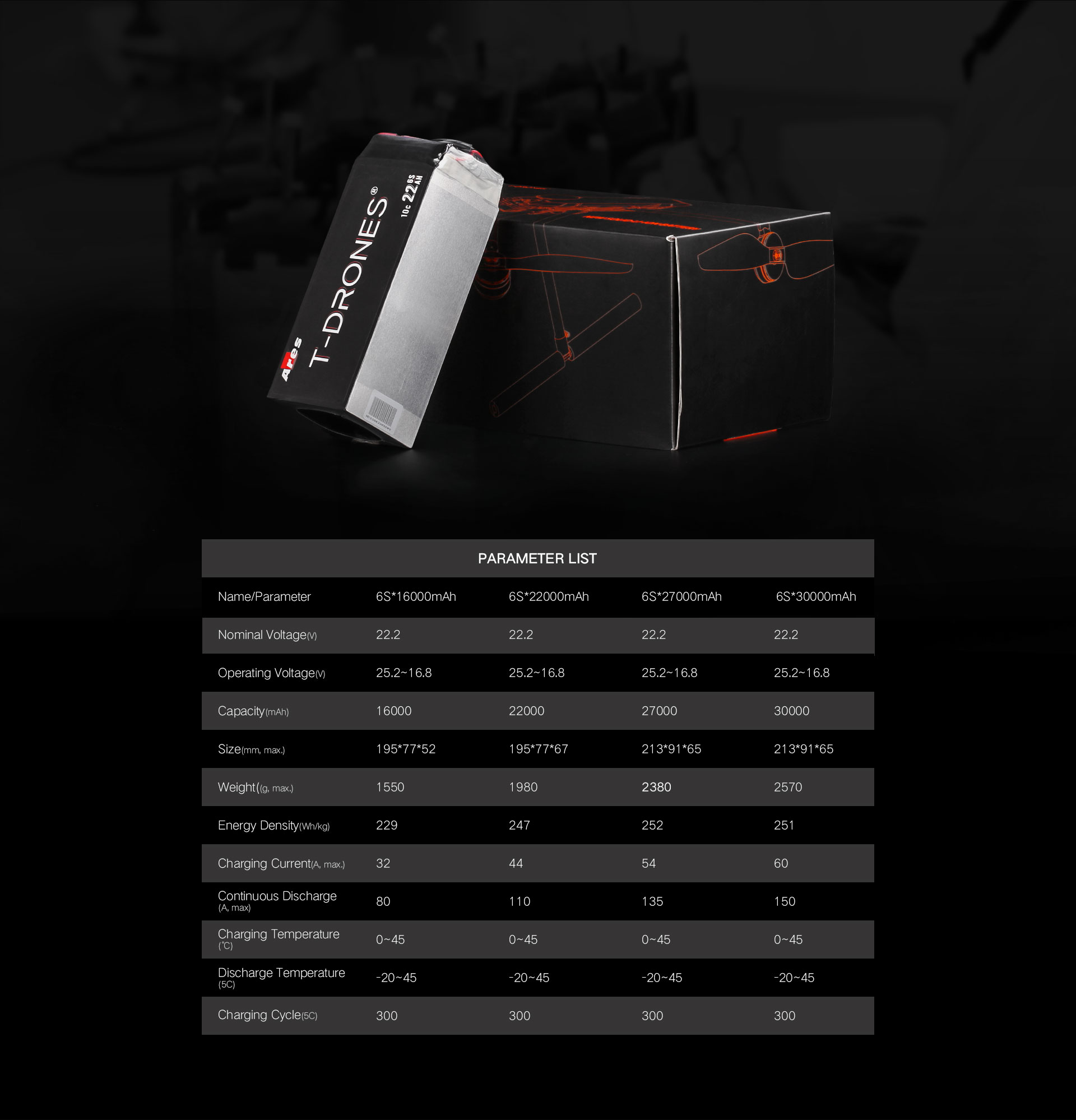

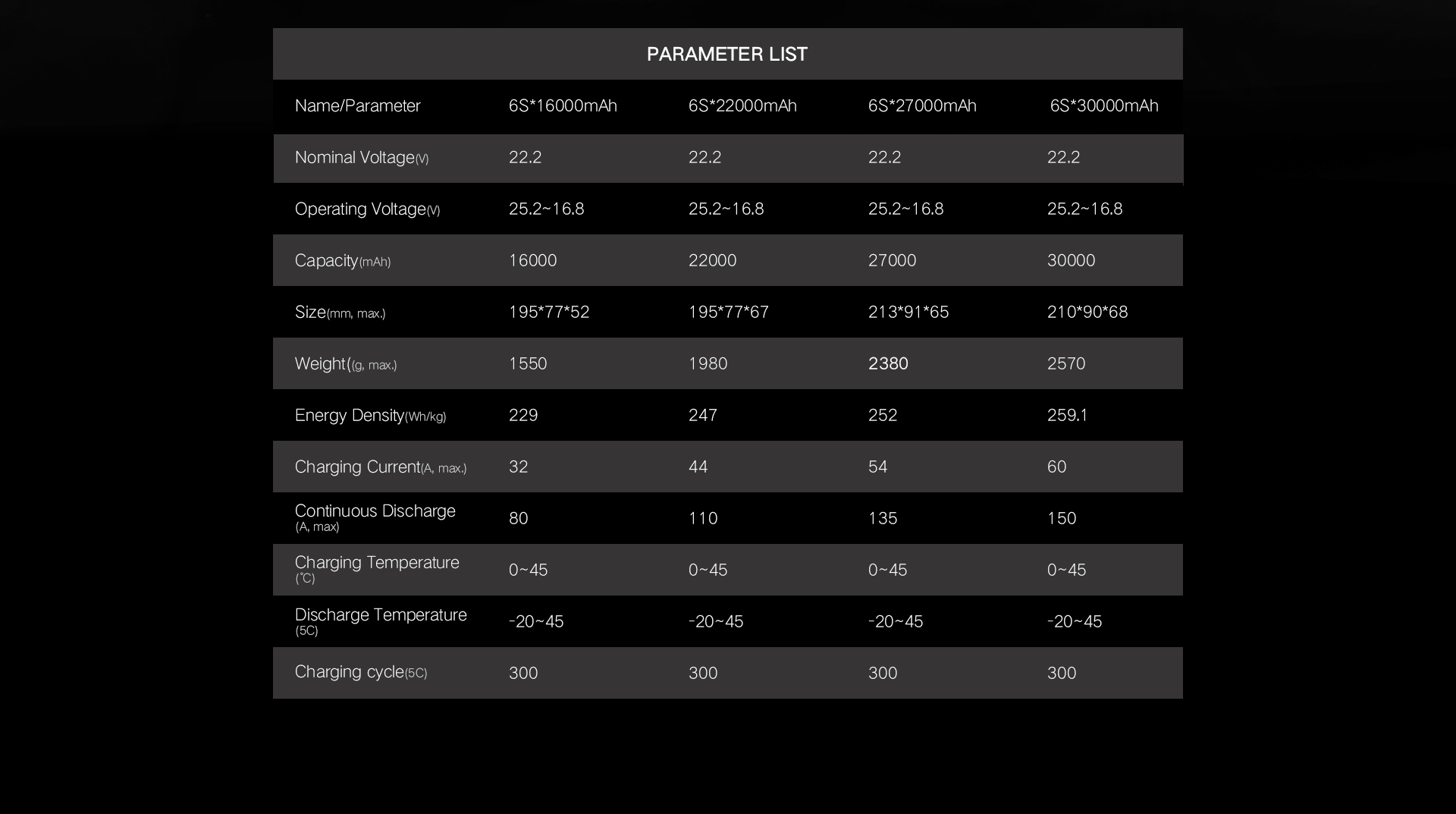

| TECHNICAL PARAMETER | |
|---|---|
| Name/Parameter | 6S*22000mAh |
| Nominal Voltage | 22.2V |
| Operating Voltage | 25.2~16.8V |
| Capacity | 22000mAh |
| Size | 195*77*67mm |
| Weight | 1980g |
| Energy Density | 253.1Wh/kg |
| Charging Current | 44A |
| Continuous Discharge | 5C(110A) |
| Max Discharge | 10C(220A) |
| Charging Temperature | 0~45℃ |
| Discharge Temperature(5C) | -10~55℃ |
| Charging Cycle(5C) | 300 |

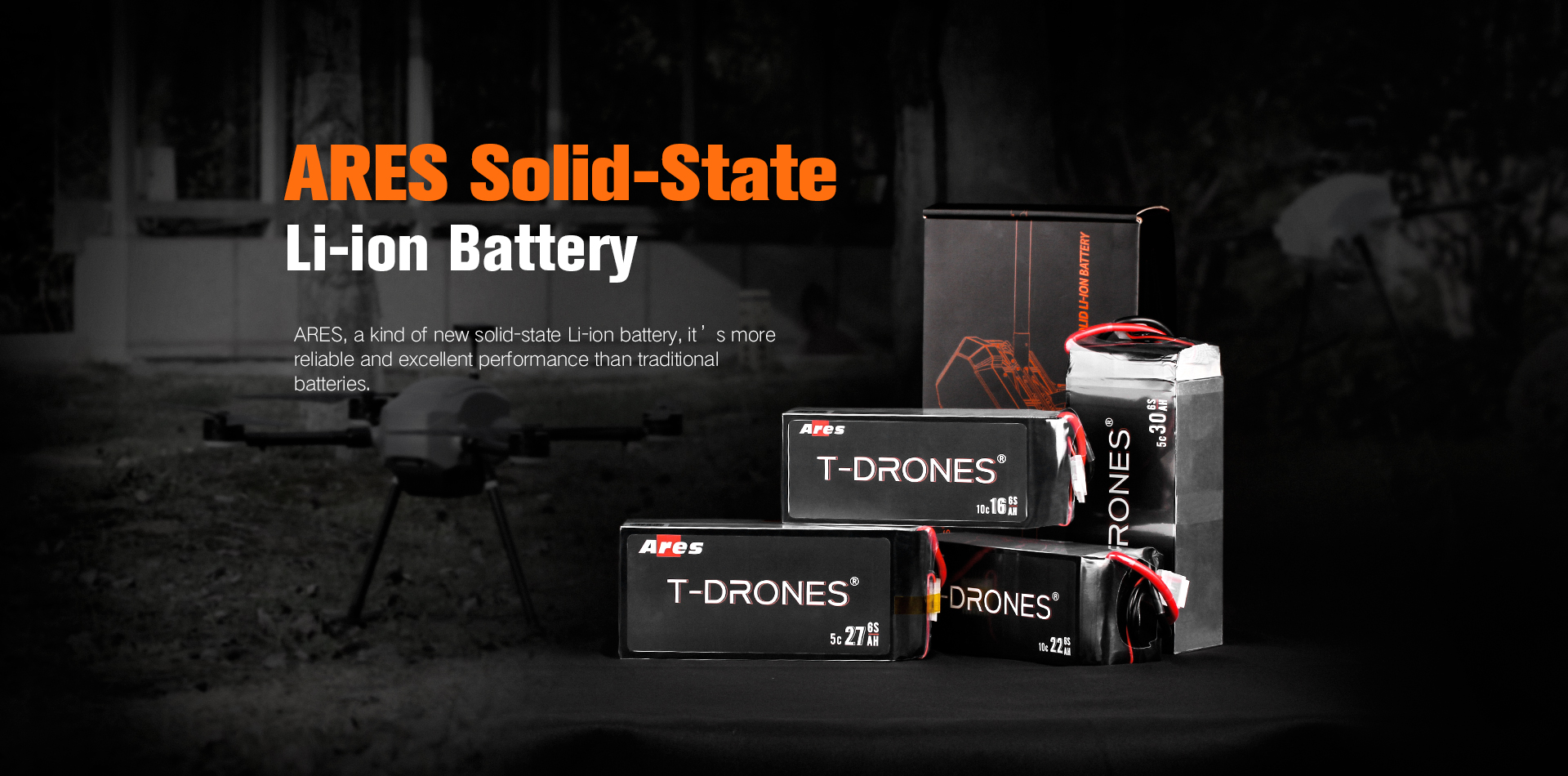

ARES, a new type of solid-state Li-ion battery, offers superior reliability and performance compared to traditional batteries.

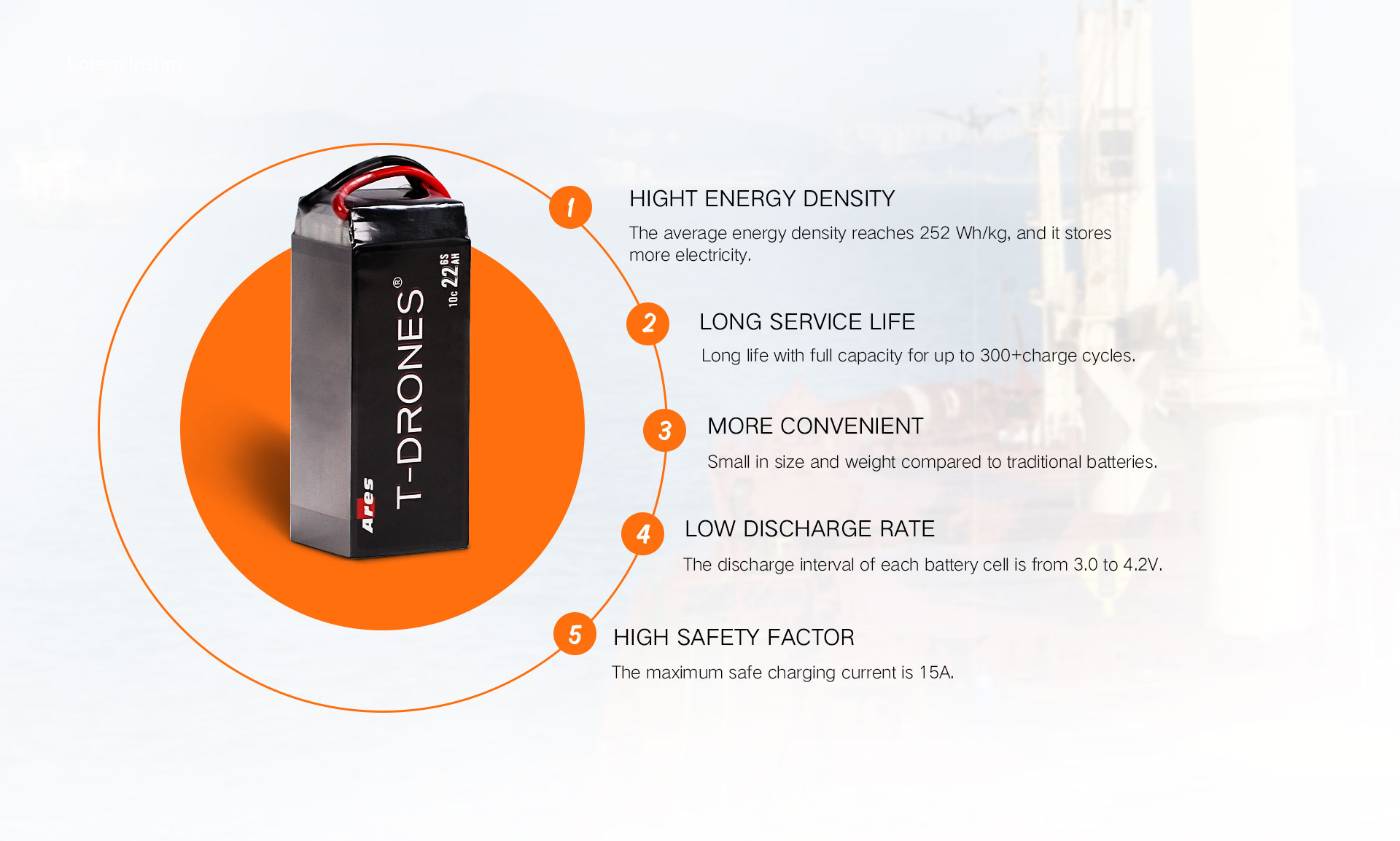

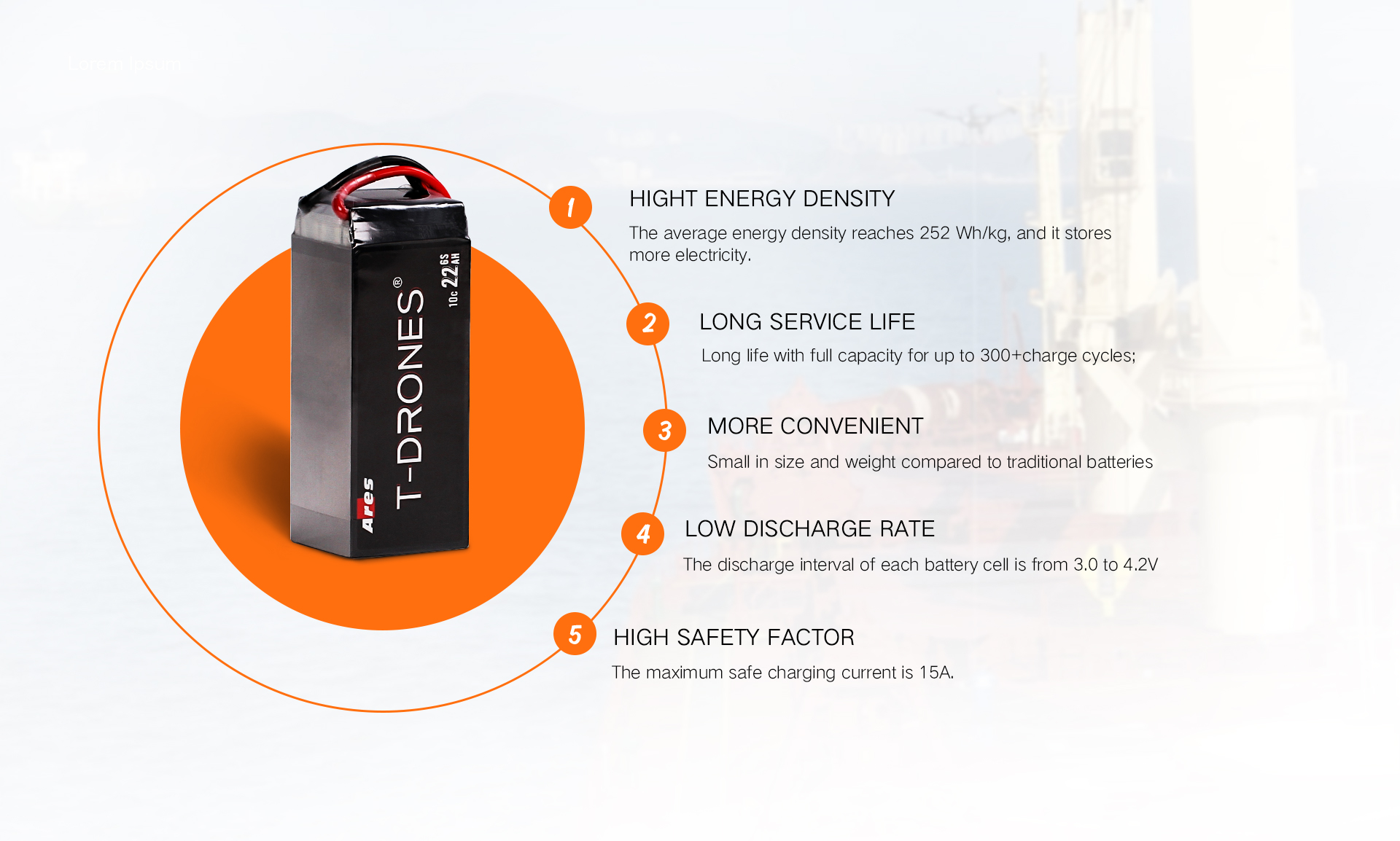

1. Hight Energy Density
The average energy density reaches 250 Wh/kg, and it stores more electricity.
2. Long Service Life
Long life with full capacity for up to 300+charge cycles.
3. More Convenient
Small in size and weight compared to traditional batteries.
4. Low Discharge Rate
The discharge interval of each battery cell is from 3.0 to4.2V.
5. High Safety Factor
The maximum safe charging current is 15A.
Ares batteries are suitable for a variety of small and medium drones.
Lighter weight, smaller volume, and longer flight time.
1. For Delivery
The high energy density of Ares batteries can improve endurance, sea transport is necessary.
2. Photogrammetry
Ares batteries are suitable for a variety of small and medium drones. Lighter weight and smaller volume, longer flight time.
3. Real Estate
Their capacity for expansive continuous operation ensures all work is completed in one go, making Ares batteries ideal for real estate applications.
